product-1000-270

3 qib
xim kub

kev hloov kho

3 qib
qhov kaj

Kev kho

120-347Vac

12V pab
fais fab mov

5 Xyoo
lav

1. 1-10V Dimmable

2. Input zaus 47-63Hz

3. Kev ua haujlwm siab tshaj plaws txog li 91%

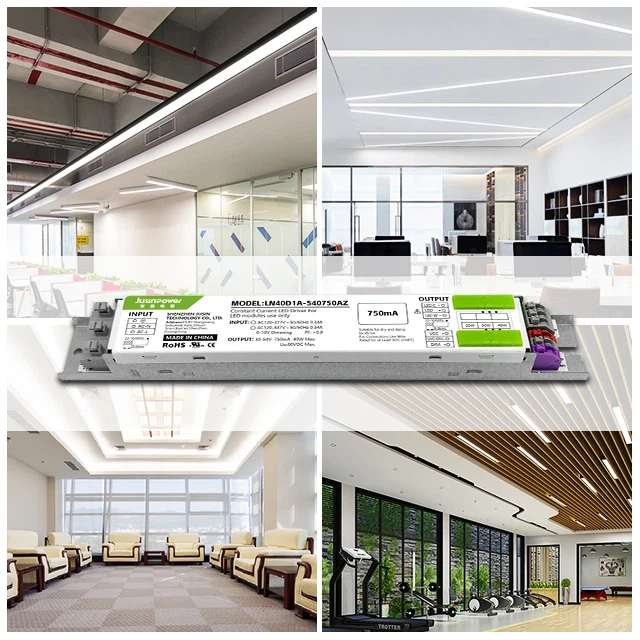

Application Scenario:

1-10V dimming tsav tsheb tsim nyog rau LED teeb nyob rau hauv qhov chaw nqaim xws li kab teeb, tri-proof teeb, cog teeb, grille teeb, thiab lwm yam.

product-1000-210

Khoom Paub meej:

Nws muaj dual dials los kho xim kub thiab lub zog, thiab ib tug 12-volt auxiliary fais fab mov tsim tsim uas yuav phim ntau yam ntse modules thiab sensors.

product-1000-210

High Quality Raw Materials thiab Exquisite Technology

product-1000-134

Kev ruaj ntseg capacitor

Sib nqus inductance

Hloov pauv

product-1000-134

Electrolytic capacitor

Dialing xim kub

Lub zog hu

product-1000-134

Txaus EMC

Brand IC

Hom high zaus tsawg impedance capacitance

Cov yam ntxwv hluav taws xob:

Thaum lub input voltage yog 277V thiab cov zis voltage yog 55V, qhov siab tshaj plaws efficiency yuav ncav cuag 91.8%.

Thaum lub input voltage yog 277V thiab cov zis voltage yog 55V, THD yog 15%.

Thaum lub input voltage yog 277V thiab cov zis voltage yog 55V, tus nqi PF yog 0.97.

0-10V dimming, thaum kho rau 1V thiab hauv qab, qhov ci ntawm lub teeb qis dua 10%.

Thaum qhov kev khiav hauj lwm kub ntawm tus tsav yog tswj ntawm 40 degree mus rau 70 degree, lub neej ua hauj lwm ntawm tus tsav yuav ncav cuag 98, 000 teev.

Thaum cov zis voltage yog 30V, cov zis tam sim no yog 1500mA. Nco tseg: nyob rau hauv qhov tso zis voltage ntau, qhov siab tshaj plaws tso zis fais fab tsis tshaj 55W.

Khoom npe:

product-500-172

Qhov Loj (mm)

Length: 210mm Dav: 28mm Qhov siab: 21mm

product-1000-210

Cov lus qhia txuas:

product-1000-500

Ob qhov kawg ntawm cov khoom txuas nrog, ib kawg yog AC input davhlau ya nyob twg, lwm qhov kawg yog DC tso zis thiab dimming teeb liab input kawg, LED +, LED C- / LED W- yog feem cuam tshuam nrog tus ncej zoo ntawm LED teeb ; DIM+ txuas nrog 0-10V; VCC txuas nrog 12V auxiliary module rau fais fab mov, GND / DIM- grounded.

Cim npe nrov: 1-10v dimming tsav, Tuam Tshoj 1-10v dimming tsav manufacturers, lwm tus neeg, hoobkas

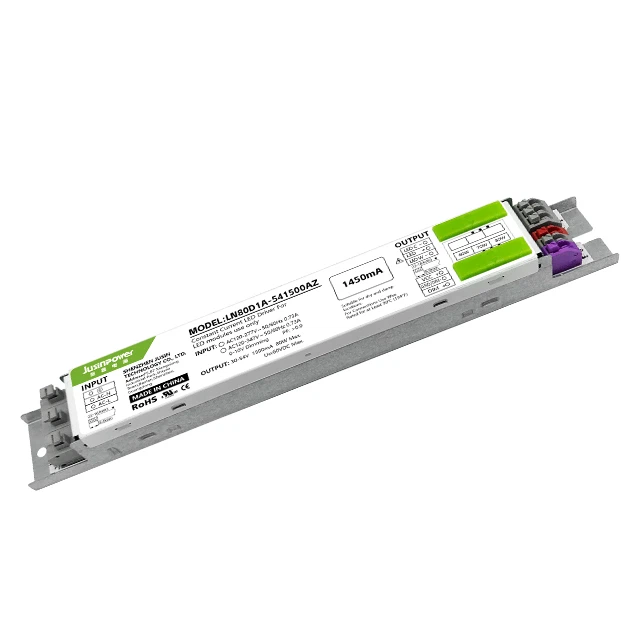

LN 80

LN80D1A

Kev ua tau zoo
Qauv	LN80D1A-541500AZ
Tswv yim	Kev ua tau zoo	91% @ 230Vac puv load
	Qhov hluav taws xob	120-277Vac(standard)
	Qhov hluav taws xob	120-347Vac (yeem)
	Ntau zaus (Hz)	50/60Hz
	Hwj chim Factor	Ntau dua lossis sib npaug rau 0.9@347Vac puv load
	THD (tag nrho load)	<20%@120Vac full load
	AC tam sim no (max)	0.8A@120Vac puv load
	Standby zog	<1W
	Inrush tam sim no (lub cav txias pib) max	30A @ 120VAC
		70A @277Vac
		100A @347Vac
	Cov dej ntws tam sim no (max)	<0.75mA@347V
Tso zis	Tam sim no (mA) / Voltage (VDC) Lub zog (W)	30-54Vdc/1500mA/75W
	Channel	1 tso zis
	Txoj Cai Lij Choj	±5%
	Tsis-load output voltage	<60V
	Pib Sijhawm	<0.5S@347V <1S@120V
	pab voltage	12V / 100mA
Muaj nuj nqi	Txoj kev dimming	{{0}}V 0.5V OFF / 0.7V OPEN
	Dimming tam sim no	<1mA@10V <2mA@0.7V
	Dimming ntau yam	7% -100% (tus qauv)
	Xim kub	Peb lub zog adjustable
Kev tiv thaiv	Tshaj kub	Thaum kub siab heev, kaw cov zis, Rov qab tau txais
	Tshaj load	Hiccup, thaum lub hwj chim tso zis ntau tshaj, ces, rov qab tau txais tom qab tshem tawm qhov txhaum
	Luv Circuit Court	Kaw cov zis, rov qab tau txais tom qab tshem tawm qhov txhaum

Lub cev
Ntev	210 hli
Dav	28 mm
Qhov siab	21 hli
Mounting Length	195mm ib
Qhov hnyav (g)	154g

Ib puag ncig
Txuj kev nyab xeeb	UL8750, Chav Kawm 1
EMC emission ua haujlwm	ntsib FCC part 15
Ua haujlwm kub	-20 degree rau 50 degree
Cia kub, av noo	-20 degree rau 85 degree , 20-90%RH
Case kub	TC =90 degree
Warranty Tc	85 degree max rau 50k Hr Lub Neej
Surge tiv thaiv	LN 1KV, L/N-FG 2KV
Kev ntsuas IP	IP20
Khoom siv	Hlau plhaub
Daim ntawv pov thawj	CE / FCC / UL daim ntawv pov thawj

Series Tsav
Qauv	Max zog	Input voltage	Cov zis hluav taws xob	Tso zis tam sim no	Hwj chim Factor	Hwj chim Kev cai	Xim kub	Kev ua tau zoo
LN40D1A-54XXXXYZ	36W	120-277/120-347Vac	30-54Vdc	750mA ua	0.9	Kho tau	Kho tau	89%
LN60D1A-54XXXXYZ	55W	120-277/120-347Vac	30-54Vdc	1000 mA	0.9	Kho tau	Kho tau	91%
LN80D1A-54XXXXYZ	75W	120-277/120-347Vac	30-54Vdc	1500 mA	0.9	Kho tau	Kho tau	91%
