0-10V Dimming LED Tsav
{{0}}V dimming coj tsav tsheb yog qhov yooj yim tshaj plaws hluav taws xob teeb pom kev zoo tswj teeb liab. Ntawm 0V, lub cuab yeej yuav dim mus rau qhov qis tshaj qhov ci ci tau tso cai los ntawm tus tsav tsheb dimming. Ntawm 10V, lub cuab yeej yuav khiav ntawm 100%. Qhov no 0-10V Dimmable LED Tsav tso cai rau coj dimming ntawm 7% mus rau 100%.
3 qib
xim kub
kev hloov kho
3 qib
qhov kaj
Kev kho
120-347Vac
12V pab
fais fab mov
5 Xyoo
lav
1. 0-10V dimmer
2. Dimming ntau ntawm 7% mus rau 100%
3. Ua tau zoo nrog cov xim tsis tu ncua thiab dim mus rau lub teeb sov

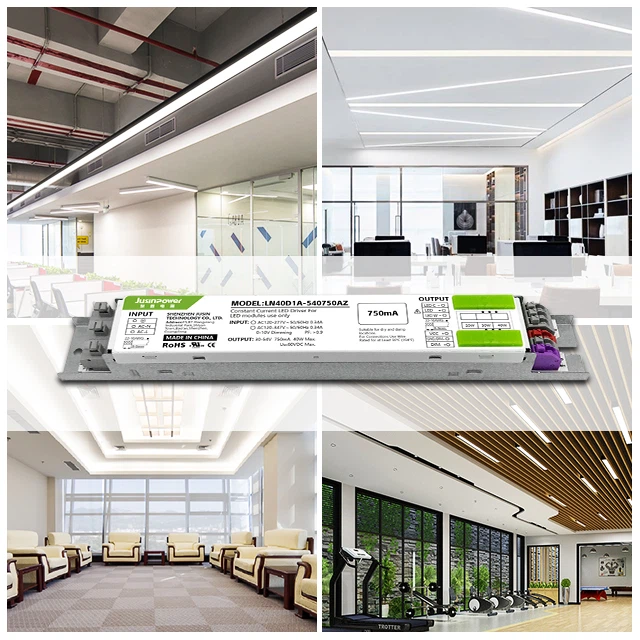

Application Scenario:
0-10V dimming LED tsav tsheb muaj qhov loj me me thiab tsim nyog rau qhov chaw nqaim, xws li cov teeb pom kev zoo, cov teeb pom kev zoo, cov teeb pom kev zoo, cov teeb ci ci thiab lwm cov teeb ci ntsa iab LED.
Khoom Paub meej:
0-10V Dimming Connection Diagram
High Quality Raw Materials thiab Exquisite Technology
Cov yam ntxwv hluav taws xob:
When the operating temperature is between 40°C and 70°C, the driver can maintain a long life. If the operating temperature is >70 degree thiab nce ntxiv, tus neeg tsav tsheb lub neej yuav ploj mus sai.
Product Label
Qhov Loj (mm)
Length: 210mm Dav: 28mm Qhov siab: 21mm
Cov lus qhia txuas:
Ob qhov kawg ntawm cov khoom txuas nrog, ib kawg yog AC input davhlau ya nyob twg, lwm qhov kawg yog DC tso zis thiab dimming teeb liab input kawg, LED +, LED C- / LED W- yog feem cuam tshuam nrog tus ncej zoo ntawm LED teeb ; DIM+ txuas nrog 0-10V; VCC txuas nrog 12V auxiliary module rau fais fab mov, GND / DIM- grounded.
Cim npe nrov: 0 10v dimming LED tsav tsheb, Tuam Tshoj 0 10v dimming LED tsav tsheb manufacturers, lwm tus neeg, Hoobkas
LN 60
LN60D1A
|
Kev ua tau zoo |
||
|
Qauv |
LN60D1A-541000AZ |
|
|
Tswv yim |
Kev ua tau zoo |
91% @ 230Vac puv load |
|
Qhov hluav taws xob |
120-277Vac(standard) |
|
|
120-347Vac (yeem) |
||
|
Ntau zaus (Hz) |
50/60Hz |
|
|
Hwj chim Factor |
Ntau dua lossis sib npaug rau 0.9@347Vac puv load |
|
|
THD (tag nrho load) |
<20%@120Vac full load |
|
|
AC tam sim no (max) |
0.6A@120Vac puv load |
|
|
Standby zog |
<1W |
|
|
Inrush tam sim no (lub cav txias pib) max |
30A @ 120VAC |
|
|
60A @277Vac |
||
|
80a347 wb |
||
|
Cov dej ntws tam sim no (max) |
<0.75mA@347V |
|
|
Tso zis |
Tam sim no (mA) / Voltage (VDC) Lub zog (W) |
30-54Vdc/750mA/40W |
|
Channel |
1 tso zis |
|
|
Txoj Cai Lij Choj |
±5% |
|
|
Tsis-load output voltage |
<60V |
|
|
Pib Sijhawm |
<0.5S@347V <1S@120V |
|
|
pab voltage |
12V / 100mA |
|
|
Muaj nuj nqi |
Txoj kev dimming |
{{0}}V 0.5V OFF / 0.7V OPEN |
|
Dimming tam sim no |
<1mA@10V <2mA@0.7V |
|
|
Dimming ntau yam |
7% -100% (tus qauv) |
|
|
Xim kub |
Peb lub zog adjustable |
|
|
Kev tiv thaiv |
Tshaj kub |
Thaum kub siab heev, kaw cov zis, Rov qab tau txais |
|
Tshaj load |
Hiccup, thaum lub hwj chim tso zis ntau tshaj, ces, rov qab tau txais tom qab tshem tawm qhov txhaum |
|
|
Luv Circuit Court |
Kaw cov zis, rov qab tau txais tom qab tshem tawm qhov txhaum |
|
|
Lub cev |
|
|
Ntev |
210 hli |
|
Dav |
28 mm |
|
Qhov siab |
21 hli |
|
Mounting Length |
195mm ib |
|
Qhov hnyav (g) |
154g |
|
Ib puag ncig |
|
|
Txuj kev nyab xeeb |
UL8750, Chav Kawm 1 |
|
EMC emission ua haujlwm |
ntsib FCC part 15 |
|
Ua haujlwm kub |
-20 degree rau 50 degree |
|
Cia kub, av noo |
-20 degree rau 85 degree , 20-90%RH |
|
Case kub |
TC =90 degree |
|
Warranty Tc |
85 degree max rau 50k Hr Lub Neej |
|
Surge tiv thaiv |
LN 1KV, L/N-FG 2KV |
|
Kev ntsuas IP |
IP20 |
|
Khoom siv |
Hlau plhaub |
|
Daim ntawv pov thawj |
CE / FCC / UL daim ntawv pov thawj |
|
Series Tsav |
||||||||
|
Qauv |
Max zog |
Input voltage |
Cov zis hluav taws xob |
Tso zis tam sim no |
Hwj chim Factor |
Hwj chim Kev cai |
Xim kub |
Kev ua tau zoo |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA ua |
0.9 |
Kho tau |
Kho tau |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000 mA |
0.9 |
Kho tau |
Kho tau |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500 mA |
0.9 |
Kho tau |
Kho tau |
91% |
