Linear Tunable Dawb LED Tsav Tsheb
Linear tunable dawb coj tsav tsheb yog tsim los rau daim ntawv thov nyob rau hauv ib tug ntau yam ntawm scenarios, uas muaj peev xwm configure cov zis tsis ntawm dimming kab.Full voltage input, lub siab tshaj plaws voltage yuav ncav cuag 347V. Muab ob txoj kev los kho lub zog thiab xim kub.Peb txhawb nqa ob qho tib si qauv thiab kev cai versions kom tau raws li qhov sib txawv OEM 's xav tau.
Nta:
5 qib
xim kub
kev hloov kho
5 qib
qhov kaj
Kev kho
Kho tau dawb
Flicker dawb
12V pab
fais fab mov
ci ntsa iab
thiab nqis
1.Cov xim kub thiab lub zog tuaj yeem hloov kho
2.High efficiency, Flicker dawb ua haujlwm
3.Output luv Circuit Court tiv thaiv
4.Average Rated Life 50, 000 teev
Application Scenario:
Haum rau LED teeb nyob rau hauv qhov chaw nqaim xws li kab teeb, tri-pov thawj teeb, nroj tsuag teeb, grille teeb, thiab lwm yam.
Xim kub thiab lub zog tuaj yeem kho tau. Nws tuaj yeem tsim rau vaj huam sib luag teeb nce thiab nqis, kab teeb, hauv pem teb davhlau, thiab lwm yam.
4 hom kev txawj ntse scene
Linear tunable dawb coj tsav tsheb tau tsim-hauv siab MCU nti, los ntawm qhov tshwj xeeb software algorithm ntawm Jusinpower R & D pab neeg, lub hwj chim mov muaj 2 lub teeb liab tau txais ports thiab 2 dip tswj chaw nres nkoj. Nws tuaj yeem muab faib raws li qhov xav tau tsis tsim nyog, raws li kom ua tiav lub zog hloov kho, hloov kho qhov ci, hloov xim kub thiab lwm yam haujlwm, hloov pauv hloov pauv 4 qhov xwm txheej.
Hluav taws xob yam ntxwv:
Thaum lub sij hawm tus txheej txheem ntawm kev kho kom sov xim kub.Dim<1V, the color temperature is lowest(2800K)
Thaum lub sij hawm tus txheej txheem ntawm kev kho rau ib tug txias xim kub.Dim<1.2V, the color temperature is lowest(2800K)
Thaum cov input voltage nce mus txog 120V thiab cov zis 38V, THD yog 5%.
Thaum kho rau {{0}}.7V, muaj 1% ci ntsa iab. Lub ci ci yuav ci dua thaum lub zog nce ntxiv, ncav cuag 100% ci ntsa iab ntawm 9.5V. 10V kuj yog 100% brightness. Thaum lub wattage txo mus rau 0.5, lub brightness yog 0%.
Nyob rau hauv qhov tso zis voltage ntau, lub siab tshaj plaws tso zis hwj chim tsis tshaj 56W.
Cov lus qhia txuas:
Ob qhov kawg ntawm cov khoom txuas nrog, ib kawg yog AC input davhlau ya nyob twg, lwm qhov kawg yog DC tso zis thiab dimming teeb liab input kawg, cov zis tuaj yeem txuas nrog ob
ywj siab teeb ntawm cov hlaws dai, LED V + yog ib qho zoo ncej, LED C- / LED W- yog ywj siab Ob tug tsis zoo ncej ntawm module, DIM txuas nrog ib txheej ntawm ywj siab 0-10V zoo ncej, CCT yog txuas nrog ib txheej ntawm kev ywj pheej 0-10V ncej zoo, 12V txuas nrog tus ncej zoo ntawm lub module, thiab GND yog cov ncej tsis zoo.
Ceeb toom:
1. Zoo cua sov dissipation tej yam kev mob prolong cov khoom lub neej. Thov nruab cov khoom nyob rau hauv ib qho chaw zoo-ventilated.
2. Cov khoom no yuav tsum tau debugged thiab ntsia los ntawm cov neeg ua haujlwm tsim nyog, thov tsis txhob kho los ntawm koj tus kheej.
Cim npe nrov: linear tunable dawb LED tsav tsheb, Tuam Tshoj linear tunable dawb LED tsav tsheb manufacturers, lwm tus neeg, Hoobkas
LD series
LD80D2C ua
|
Kev ua tau zoo |
||
|
Qauv |
LD80D2C-421800A |
|
|
Tswv yim |
Kev ua tau zoo |
86%@220Vac puv Load |
|
Qhov hluav taws xob |
120-277Vac(Standard) |
|
|
120-347Vac(Optional) |
||
|
Ntau zaus (Hz) |
50/60Hz |
|
|
Hwj chim Factor |
Ntau dua lossis sib npaug rau 0.9@347Vac Full Load |
|
|
THD (Full Load) |
<10%@120Vac Full Load |
|
|
Ac tam sim no (Max) |
0 86A@120Vac Puv Load |
|
|
Standby Fais Fab |
<1W |
|
|
Inrush tam sim no (Cold Engine Start) Max |
32A @ 120VAC |
|
|
58a277 wb |
||
|
70a347 wb |
||
|
Leakage tam sim no (Max) |
55W |
|
|
Tso zis |
Tam sim no (ma) / Voltage (Vdc) Lub zog (W) |
30-42Vdc/1800ma75W |
|
Tam sim no Ripple |
<10% |
|
|
Channel |
Dual tso zis |
|
|
Txoj Cai Lij Choj |
±5% |
|
|
Tsis-Load Output Voltage |
<60V |
|
|
Pib Sijhawm |
<0.5S@347V <1S@120V |
|
|
Pab Voltage |
12V / 100mA |
|
|
Muaj nuj nqi |
Txoj Kev Dimming |
{{0}}V 0.5V Tawm / 0.7V Qhib |
|
Dimming Tam sim no |
<1ma@10V <2ma@0.7V |
|
|
Dimming Range |
1% -100% (Standard) |
|
|
10% -100% (Yeem) |
||
|
Hwj chim |
5 Kho tau |
|
|
Xim kub |
5 Adjustable (yeem) |
|
|
Stepless Dimming (Standard) |
||
|
Kev tiv thaiv |
Tshaj kub |
Thaum kub siab heev, kaw cov zis, Rov qab Automatically |
|
Tshaj Load |
Hiccup, Thaum cov zis hluav taws xob dhau, ces, rov qab tuaj yeem rov qab tsis raug tshem tawm |
|
|
Luv Circuit Court |
Kaw cov zis, Rov qab tuaj yeem tom qab tshem tawm qhov txhaum |
|
|

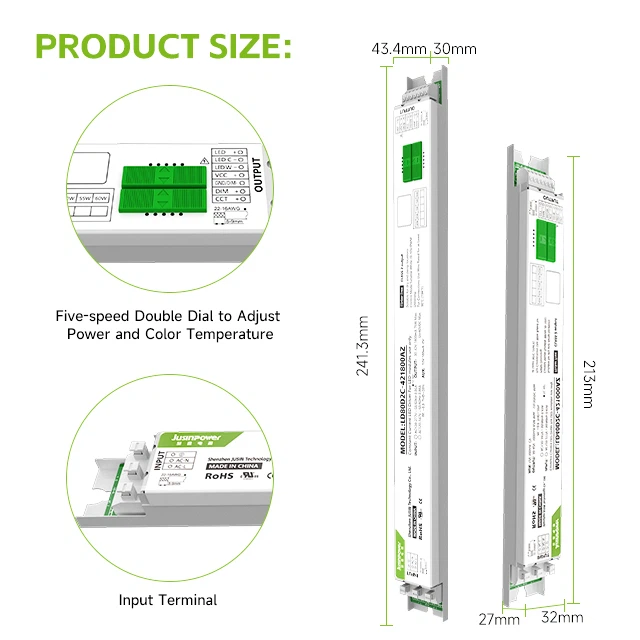

Lub cev |
|
|
Ntev |
360 hli |
|
Dav |
30 |
|
Qhov siab |
26 mm |
|
Mounting Length |
34mm ib |
|
Qhov hnyav (g) |
416g |
|
Ib puag ncig |
|
|
Txuj kev nyab xeeb |
UL8750, Chav Kawm 2 |
|
EMC emission ua haujlwm |
ntsib FCC part 15 |
|
Ua haujlwm kub |
-20 degree rau 50 degree |
|
Cia kub, av noo |
-20 degree rau 85 degree , 20-90%RH |
|
Case kub |
TC =90 degree |
|
Warranty Tc |
85 degree max rau 50k Hr Lub Neej |
|
Surge tiv thaiv |
LN 1KV, L/N-FG 2KV |
|
Kev ntsuas IP |
IP20 |
|
Khoom siv |
Hlau plhaub |
|
Daim ntawv pov thawj |
CE / FCC / UL daim ntawv pov thawj |
|
Series Tsav |
||||||||
|
Qauv |
Max zog |
Input voltage |
Cov zis hluav taws xob |
Tso zis tam sim no |
Hwj chim Factor |
Hwj chim Kev cai |
Xim kub |
Kev ua tau zoo |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000 mA |
0.9 |
Kho tau |
Kho tau |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350 mA |
0.9 |
Kho tau |
Kho tau |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800 mA |
0.9 |
Kho tau |
Kho tau |
86% |
